Evenheat Cube 7

The Cube 7 is a small heat treat oven designed primarily for machinist and prototype work while also serving the small blade maker as well. It operates from 120V and has a chamber of 7″ x 7″ x 7″. Maximum use temperature of 2350°F.

The Cube 7 is built entirely with firebrick. Firebrick is the preferred heat treat material as it stores heat at the beginning of the process and then easily and gently releases it during the soak/hold period resulting in incredible temperature stability.

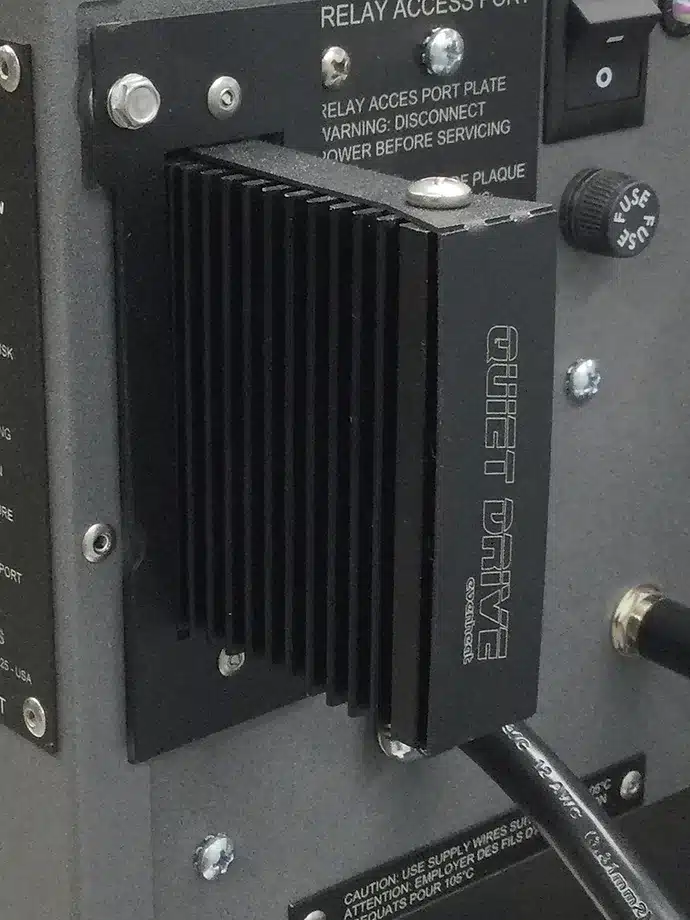

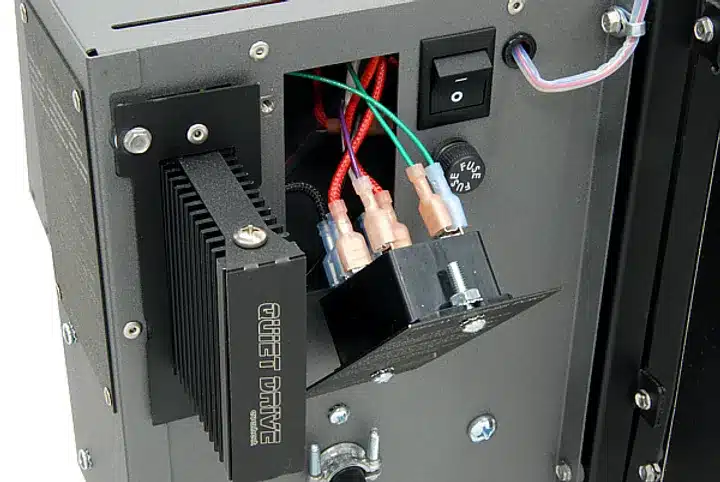

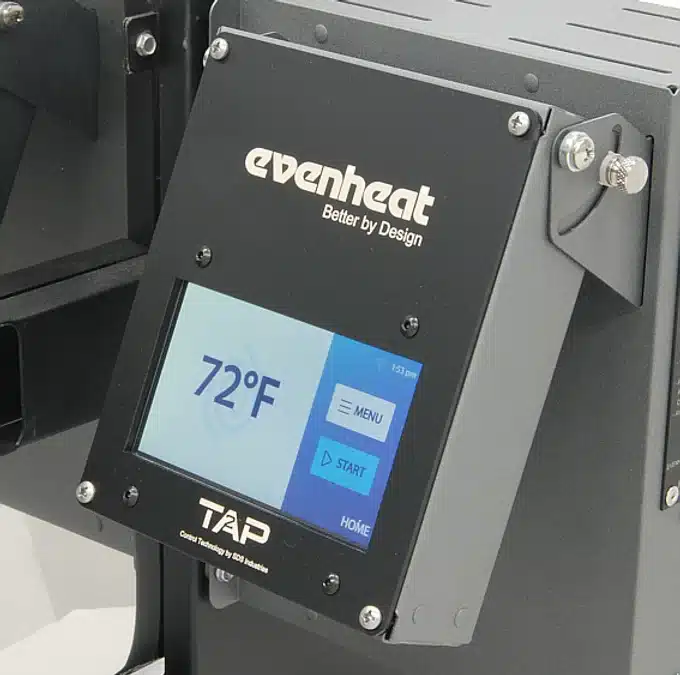

The Cube 7 is available with either the TAP II or Rampmaster 3 controls. Match it up with our Quiet Drive Solid State relay option for high performance and long life.

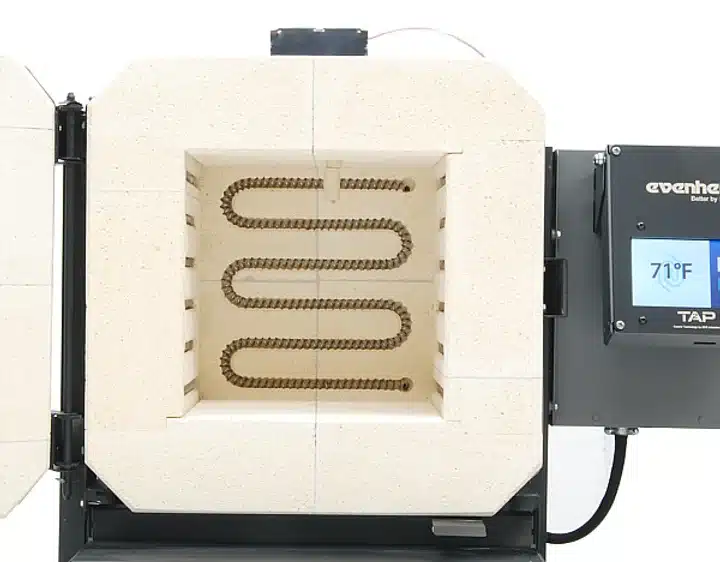

Chamber Dimensions:
7″ D x 7″ W x 7″ H – 0.20 Cubic Feet
(17.8cm D x 17.8cm W x 17.8cm H – 5.7L)​

Outside Dimensions:
15.5″ D x 23″ W x 21″ H
(39.4cm D x 58.4cm W x 53.3cm H)

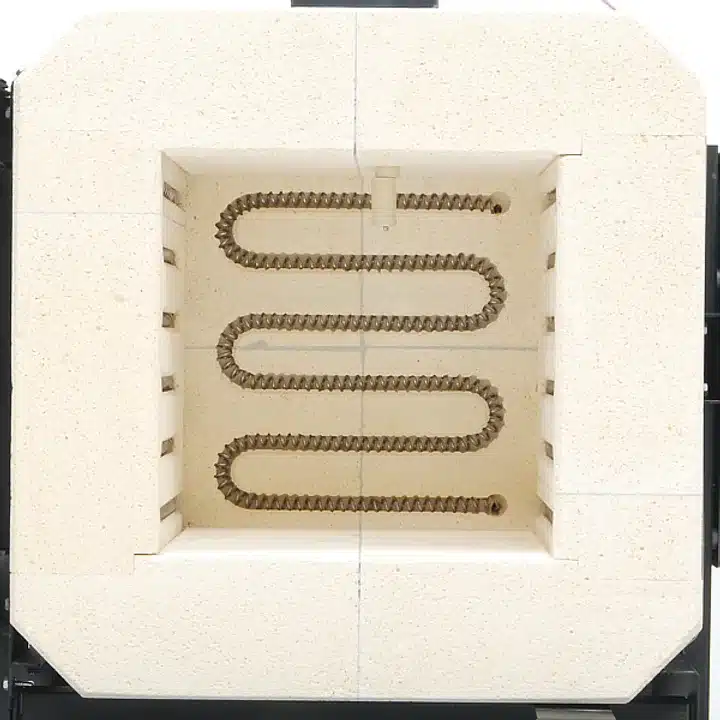

​Maximum Use Temperature:
2350°F (1287°C)​

Standard Electrical:
120 Volts, 12 Amps, 1440 Watts, 50/60Hz, Single Phase

Power Cord Plug Configuration – NEMA 5-15​

Weight:
65lb. (29.5Kg) – Approx.

Shipping Method:
Freight Truck

​
